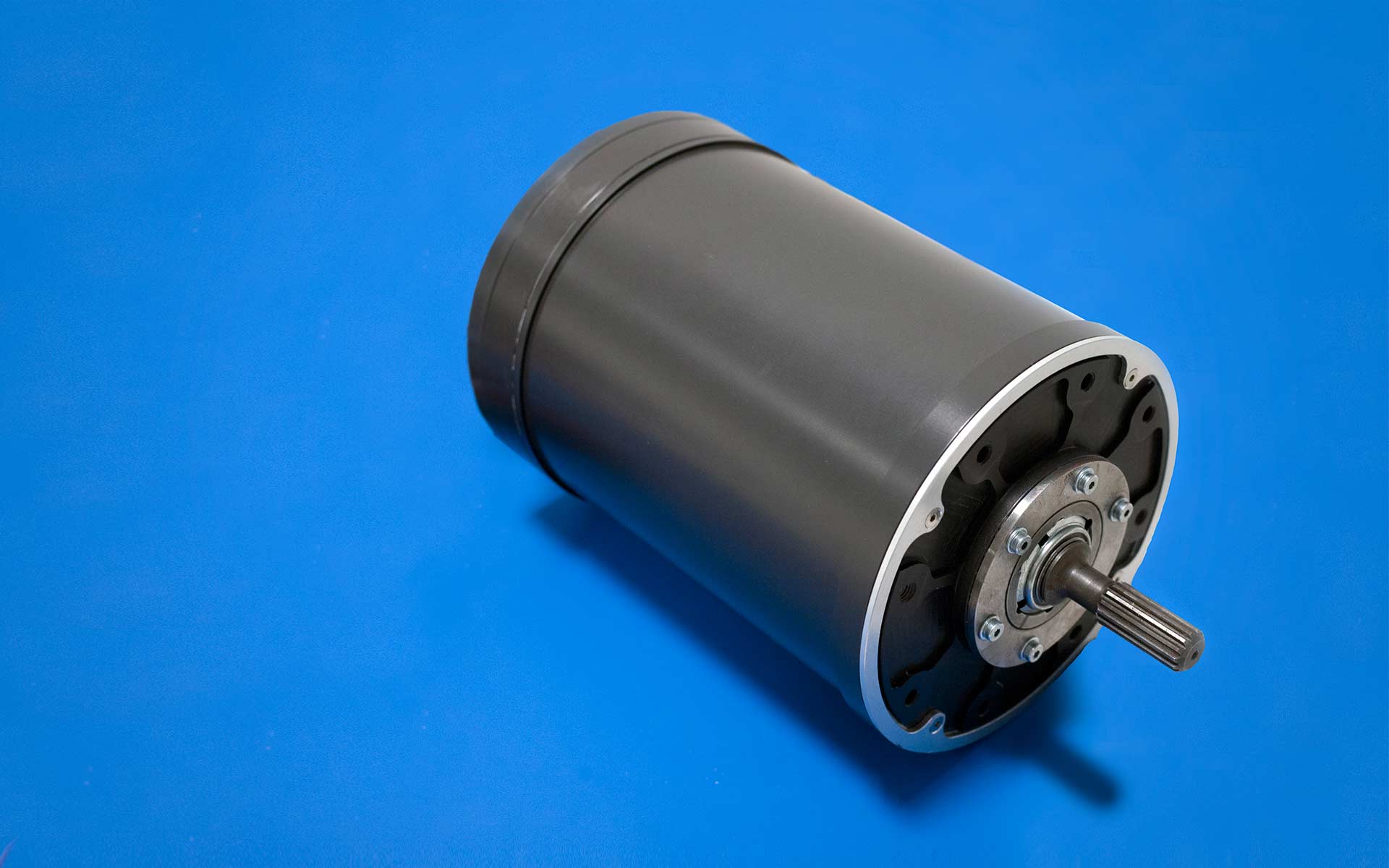

HIGH SPEED PERMANENT MAGNET ELECTRIC MOTOR FOR: AUTOMOTIVE, AERONAUTIC AND AGRICOLTURE APPLICATIONS

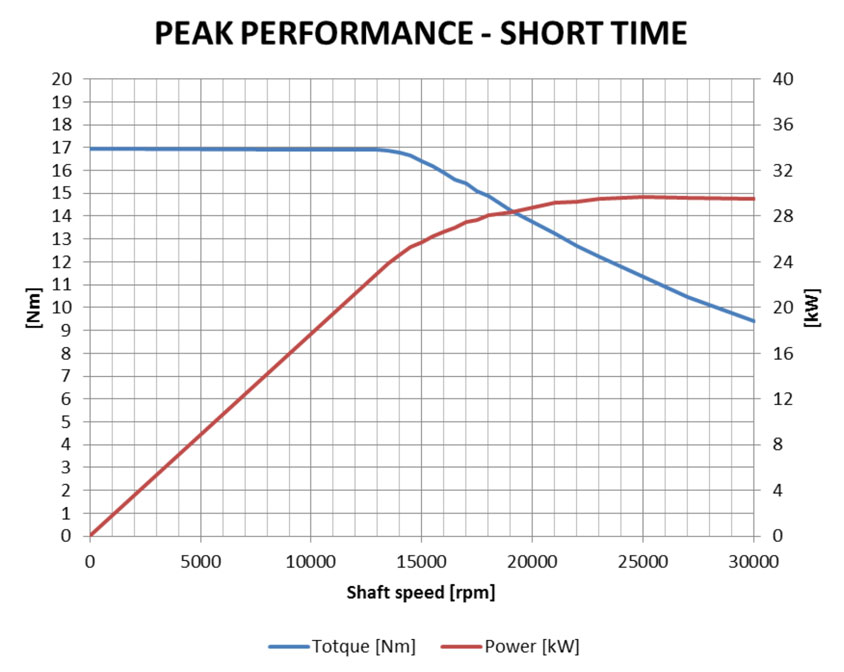

Specifiche 24K LOW VOLTAGE
|
MAIN FEATURES: |
|
|
DC Supply Voltage |
48 VDC |
|
Max Frequency |
1000 Hz |
|
Maximum Speed |
30.000 rpm |
|
Maximum Torque |
16.95 Nm |
|
Maximum Power |
28.8 kW |
|
Maximum Current |
495 ARMS |
|
Dimensions |
D 185 x L 159 |
|
Motor Weight |
10.5 kg |
|
Liquid cooling |
5 – 8 L/min |
Specifiche 100K HIGH VOLTAGE
|
MAIN FEATURES: |
|
|
DC Supply Voltage |
400 VDC |
|
Max Frequency |
1000 Hz |
|
Maximum Speed |
30.000 rpm |
|
Maximum Torque |
90.1 Nm |
|
Maximum Power |
127.8 kW |
|
Maximum Current |
320 ARMS |
|
Dimensions |
D 190 x L 250 |
|
Motor Weight |
23.0 kg |
|
Liquid cooling |
5 – 8 L/min |
